Multi-impeller Paddle Aerators Diesel or Electric Motor – Madan Technologies
Multi-impeller Paddle Aerators Diesel or Electric Engine – CSC Models

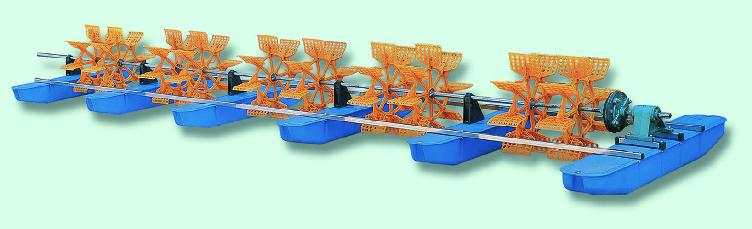

Diesel or electric motor multi-paddle aerators are available according to the needs of our customers.
The Diesel aerator presents an excellent solution for areas where the electricity grid does not reach and also for emergencies.

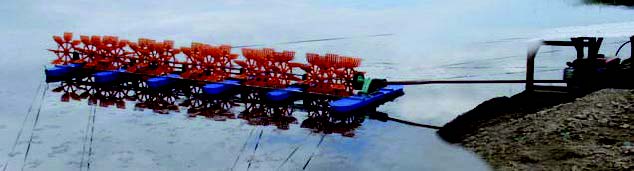

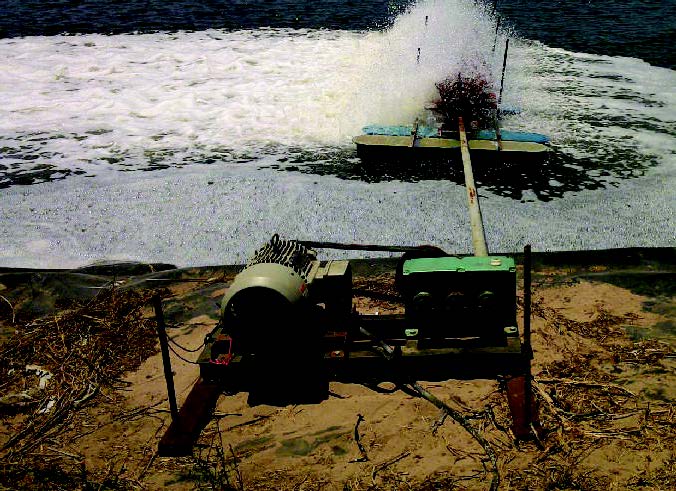

The 4 meter shaft driven by the motor (electric or diesel) makes it possible to locate the motor comfortably on land or on a floating raft.
- Equipped with a 4.0 meter universal drive shaft, it allows the motor to be positioned easily and comfortably on the ground.
- Equipped with stainless steel impeller frame and drive shaft, the aerator is stable, efficient and has a long service life.
- High efficiency reducer with clutch which allows comfortably to stop the work of the aerator for all types of adjustment. Ratio 1:14
- Adjustable driveshaft bracket allows you to determine the height of the impellers for maximum efficiency.
- High efficiency reducer, inboard clutch system, 1:12 ratio
- “Molten Bearing Base” Provides aerator stability, Prevents oscillations.
- High efficiency reducer, outer clutch system, double transfer shaft. Ratio 1:14
| Model | Motor Type | Power (HP) | # of Impellers | RPM | Ratio | Length (Mt) | Units per 40ft container |
|---|---|---|---|---|---|---|---|
| CSCD-510 | Diesel | 18 | 16 | 100 | 1:14 | 6 | 48 |
| CSCE-510 | Electric | 7.5 | 16 | 100 | 1:14 | 6 | 48 |
| CSCDL-510 | Diesel | 20 | 16 | 100 | 1:16 | 18 | 40 |
| CSCEL-510 | Electric | 10 | 16 | 100 | 1:16 | 18 | 40 |
